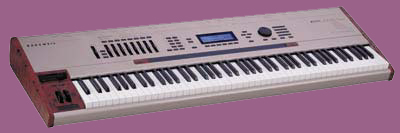

K2600AES



Krótki opis:

The K2600XAES comes with 128 MB of sample RAM. and can sample at 29.4 kHz, 32 kHz, 44.1 kHz, 48 kHz (analog rates) and all digital inputs (AES acts as the digital slave). The highest quality 16 bit stereo A to Ds were used (analog sample inputs include two XLR balanced, and 1/4" T/R/S unbalanced) as well as highly regarded 18 bit DACs to preserve the high quality analog audio path (8 unbalanced outputs). The AES also provides a true 20 bit digital out. All internal processing in the AES is done with at least 24 bits of precision. All sounds can all be mixed, blended, chopped, heavily processed, filtered, resampled, and time stretched before adding any of the stellar 24 bit digital effects and then resampled again.

Specyfikacja:

  • Power Supply: User switchable international power supply.
  • Architecture: Proprietary V.A.S.T. system.
  • Polyphony: 48 voices.
  • Display: 64 x 240 fluorescent backlit display.
  • Analog I/O: 8 balanced audio outs plus balanced mix stereo pair. 600-ohm stereo headphone out. Stereo 1/4 in. unbalanced analog hi-Z input (tip/ring/sleeve); two balanced lo-Z (XLR) inputs.
  • Digital I/O: AES/EBU, S/PDIF (via Optical and RCA) inputs and outputs. 8 channel KDS out to DMTi. 2 channel KDS In from DMTi.
  • Sample RAM: 128 MB SIMMs.
  • Sound ROM: 28 MB: 8 MB base ROM with K2000 file compatibility plus additional 8 MB Orchestral ROM, 8 MB Contemporary ROM and Stereo Dynamic Piano Sound Blocks. 1 addittional ROM blocks will be released in the future.
  • Sequence/Program RAM: 1503 kB user-programmable battery-backed RAM.
  • SCSI support: Two SCSI-1 25-pin D connectors (to Apple specifications and pinout)
  • Flash ROM (for software updates via floppy disk and SCSI): The current version is 3.01. The operating system in your unit is displayed on power up. Click here to download version 3.01 from our FTP site.
  • Full MIDI controller capabilities: Includes 8 sliders, 2 ribbon controllers, 2 button switches, 4 switch pedal jacks, 2 continuous controller jacks, breath controller jack, mod wheel (without spring), pitch bend wheel (with spring), and aftertouch - all assignable to any MIDI controller number.
  • AFMS File System: User-friendly cataloging and retrieval of individual objects. Powerful utilities including: file search, info about media/available space, disk macros, startup file applications, and more.
  • Sequencer: Full-function sequencer with 16 song and 16 arrangement tracks. Offers pattern, linear, and step recording, Cut, Copy, Paste, advanced 'groove' quantizing, event list editing and other powerful editing tools. Sequences can be triggered in real time from the keyboard.
  • Compatibility: Reads/writes Standard MIDI Files, AIFF and WAVE files. Reads libraries in Roland 700 series, Akai S900, S950, S1000, S1100, and S3000, and Ensoniq EPS, and ASR file formats.
  • Sampling: Can sample from analog or digital input. 128 MB of SIMMs allows over 13 minutes of stereo sampling at 48kHz. Sample-while-play allows you to sample what you are playing or sample an external source while a sequence is playing. DSP functions include time compression/expansion, pitch shifting, re-sampling, pasting samples on a beats per minute time line (Mix Beat), volume ramps, mix sample and many other functions.
  • KDFX: Kurzweil's own high end effects process, KDFX utilizes Kurzweil's newest VLSI DSP chip. Versatile 4-stereo-bus design, full bandwidth, cutting edge DSP functionality, digital I/O and flexible routing scheme.
  • DMTi: Digital MultiTrack interface performs real-time digital data format conversion between K2600, AES/EBU, S/PDIF, ADAT and DA-88. It simultaneously performs real-time sample-rate conversion to 44.1 kHz, 48 kHz or a variety of external clock rates. The K2600XAES includes 2 DMTi, one with the ADAT card installed and on with the TDIF card installed.
  • 2 Gig Internal Hard Drive: Comes loaded with various file of samples, programs, demos, etc.
  • 41 disk CD-ROM library: The CD-ROM Library contains many of the most popular and high quality samples available.
  • SCSI CD-ROM drive: An external CD-ROM drive is included for loading of the library.
  • Dimensions: 54.3" x 17.8" x 4.8" (137.9 cm x 45.1 cm x 12.2 cm)
  • Weight: 72 lbs. (32.7 kg)
