Krótki opis:

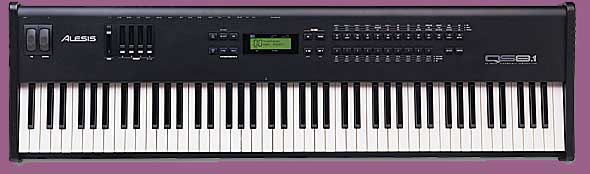

The QS8.1 offers a high-speed serial data port for direct computer interfacing in addition to their MIDI In, Out and Thru connections, and the ADAT Optical output for direct digital audio connection to a wide variety of recorders, mixers and other tools that use this standard multichannel transfer protocol. The built-in multieffects include great-sounding reverb, chorus, distortion, EQ, delay, rotary speaker simulation and more.
Specyfikacja:
- Sound Generation Method:
16 Bit Linear 48kHz Sample ROM with sweepable lowpass filter per voice
- Synthesis:
QS Composite Synthesis™
- Polyphonic Voices:
64, each with sweepable lowpass filter, 3 envelope generators, 3 LFOs, programmable effects send and QS Modulation Matrix, dynamic voice allocation
- Keyboard Section:
88 hammer action weighted keys (velocity, release velocity, aftertouch sensitive)
- Available Waveform Memory:
16MB, expandable to 32 MB via PCMCIA Expansion Card Slots
- Program Memory:
Program Mode (512 Preset, 128 User)
Mix Mode (400 Preset, 100 User)
- Effects:
QS Parallel Matrix Effects™ (4 independent stereo multieffect processing busses)
- Multitimbral Mode:
QS Mix Mode™ (64 Part multitimbral across 16 MIDI channels)
- Controllers:
4 Control Sliders, Programmable Pitch and Modulation wheels, Aftertouch
- Expansion Slot:
PCMCIA card slots, QCard and Sound Bridge compatible
- User Interface:
Large backlit custom LCD display
- Pedal Jacks:
(2) Assignable Aux pedal jacks, Sustain pedal jack
- MIDI Connections:
MIDI In, MIDI Out, MIDI Thru
- Serial Jack:
High speed computer interface switchable between RS 422 and RS 232 protocols, Mac and PC compatible
- Audio Outputs:
Main L/R (1/4”), Aux L/R (1/4”), Headphone (1/4” TRS)
- Power:
Internal Transformer
- Dimensions (WxHxD):
51in. x 4in. x 16in.
- Weight:
60 lbs
27.2 kg
|
