Krótki opis:

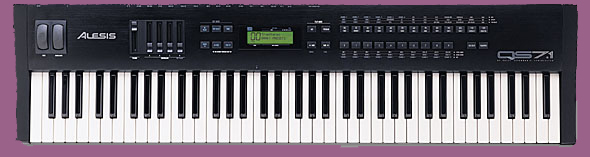

The QS7.1 offers an immense 16MB onboard sound library, comprising 640 programs and 500 multitimbral mixes. You’ll find Alesis’ highly-acclaimed stereo grand piano sounds, as well as dozens of organs, cutting-edge and vintage synth sounds, strings, brass, winds, guitars, drums, percussion, loops and much more. In addition to its great onboard collection of sounds, the QS7.1 is compatible with Alesis’ QCard ROM expansions, so you can add another 16MB of brand new samples and program/ mix information in nearly every musical genre by using the two rear panel card slots. The QS7.1 is also compatible with Sound Bridge software that lets you import, save and playback AIFF, WAV and other sample formats, allowing you to use your own samples or sounds from other sample libraries.
Specyfikacja:
- Sound Generation Method:
16 Bit Linear 48kHz Sample ROM with sweepable lowpass filter per voice
- Synthesis:
QS Composite Synthesis
- Polyphonic Voices:
64, each with sweepable lowpass filter, 3 envelope generators, 3 LFOs, programmable effects send and QS Modulation Matrix, dynamic voice allocation
- Keyboard Section:
76 semi-weighted keys (velocity, release velocity, aftertouch sensitive)
- Available Waveform Memory:
16MB, expandable to 32 MB via PCMCIA Expansion Card Slots
- Program Memory:
Program Mode (512 Preset, 128 User)
Mix Mode (400 Preset, 100 User)
- Effects:
QS Parallel Matrix Effects™ (4 independent stereo multieffect processing busses)
- Multitimbral Mode:
QS Mix Mode™ (64 Part multitimbral across 16 MIDI channels)
- Controllers:
4 Control Sliders, Programmable Pitch and Modulation wheels, Aftertouch
- Expansion Slot:
PCMCIA card slots, QCard and Sound Bridge compatible
- User Interface:
Large backlit custom LCD display
- Pedal Jacks:
(2) Assignable Aux pedal jacks, Sustain pedal jack
- MIDI Connections:
MIDI In, MIDI Out, MIDI Thru
- Serial Jack:
High speed computer interface switchable between RS 422 and RS 232 protocols, Mac and PC compatible
- Audio Outputs:
Main L/R (1/4”), Aux L/R (1/4”), Headphone (1/4” TRS)
- Power:
Internal Transformer
- Dimensions (WxHxD):
44.25in. x 3.5in. x 11.5in.
- Weight:
33 lbs
14.9kg
|
